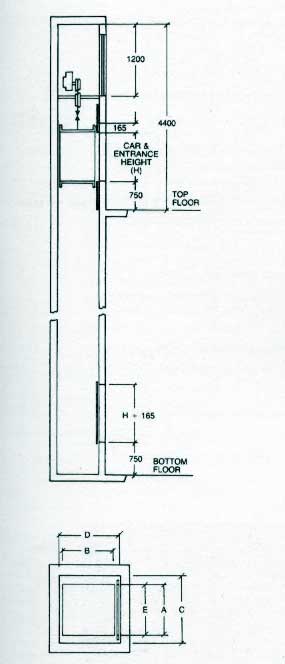

Layout Drawing for EISA DumbWaiter

EISA Dumbwaiters are designed to handle weights in the range of 100 to 250 Kgs at speeds of 0.25 to 0.50 mps.

Different Control Systems are available to choose Dumbwaiters depending upon the number of Floors served and the frequency and intensity of services.

The table below enumerates Space Requirements for a DumbWaiter.



Load
 Speed
Car-Inside
Lift-Well & Machine Room
Entrance
Kg.
mps
A
B
H
C
D
E
H
100
0.50
700
700
800
1200
900
700
 800
150
0.50
800
800
900
1300
1000
800
 900
200
0.25
 900 900
1000
 1400 1100
900
 1000
250
0.25
 1000 1000
1200
 1500 1200
1000
 1200
