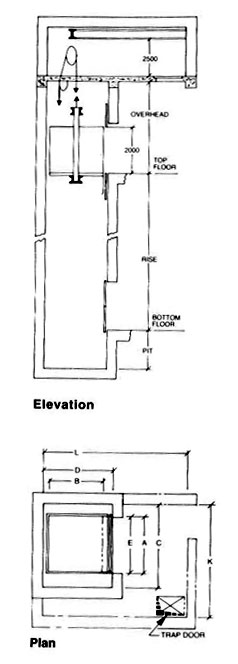

Layout Drawing for EISA Freight Elevator

EISA Freight Elevators are designed with a close consideration of factors such as weight and volume of goods to be transported, usage frequency and method of handling goods.

A wide range of capacities and control systems offer our clients a wide choice to choose elevators that suit their buildings and businesses requirements.

Please mail us your requirements and we shall design the Freight Elevator for you that meets exactly your requirements and space considerations.

The table below enumerates Space Requirements for a Freight Elevator.

Load
Car-Inside
Lift-Well
Entr
ance
Machine Room
Kg.
A
B
C
D
E
K
L
0500 1100 1200 1900 1600 1100 2500 4100
1000
1400
1800
2300
2200
1400
2500
4700
1500
1700
2000
2600
2400
1700
2600
4900
2000 1700 2500 2600 2900 1700 2600 5400
2500 2000 2500 2900 2900 2000 2900 5400
3000 2000 3000 2900 3400 2000 2900 5900
4000 2500 3000 3400 3400 2500 3400 5900
5000 2500 3600 3500 4300 2500 3500 6800

LOAD [Kg]
SPEED [mps]
PIT DEPTH
OVER HEAD
500-3000
0.25- 1.0
1600
4800
4000-5000
0.25
2200
6500
