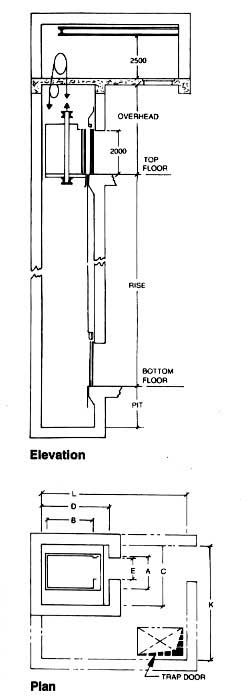

Layout Drawing for EISA Hospital Elevator

EISA Hospital Elevators are designed to meet day-to-day requirements of a Hospital. The Elevator car [internal size: 1600mm X 2400mm] easily carries a standard hospital bed. Bulky Hospital equipment can also be transported via an EISA Hospital Elevator.

The speeds of a Hospital Elevator range from 0.40mps to 2.5mps for large multi-storeyed hospitals.

Minimal operational Sound ensure the quiet atmosphere of a hospital is not disturbed by EISA Hospital Elevators.

The large internal size of the car comes in handy to transport beds, stretchers, Modern Equipment and Machineries.

The table below enumerates Space Requirements for a Hospital Elevator.

Load
Car-Inside
Lift-Well
Entr
ance
Machine Room
Persons
Kg.
A
B
C
D
E
K
L
15
 1020 950 2400 1700 3000 800 3700 5500
20
1360
1300
2400
2200
3000
1200
4200
5500
26
1768
1600
2400
2350
3000
1200
4350
5500

SPEED [mps]
PIT DEPTH
OVER HEAD
Up to 1.5
1600
4400
Over 1.5
2500
5400
